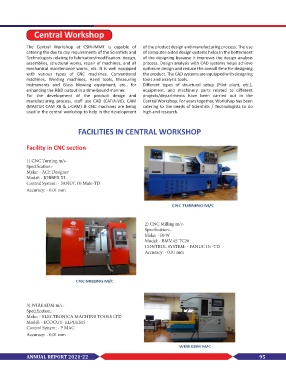

Central Workshop

The Central Workshop at CSIR-IMMT is capable of of the product design and manufacturing process. The use
catering the day to day requirements of the Scientists and of computer-aided design systems helps in the betterment
Technologists relating to fabrication/modification, design, of the designing because it improves the design analysis
assemblies, structural works, repair of machines, and all process. Design analysis with CAD systems helps achieve
mechanical maintenance works, etc. It is well equipped optimum design and reduce the overall time for designing
with various types of CNC machines, Conventional the product. The CAD systems are equipped with designing
machines, Welding machines, Hand tools, Measuring tools and analysis tools.
instruments and Glass blowing equipment, etc., for Different types of structural setup (Pilot plant, etc.),
enhancing the R&D output in a time-bound manner. equipment, and machinery parts related to different
For the development of the product design and projects/departments have been carried out in the
manufacturing process, staff use CAD (CATIA-V6), CAM Central Workshop. For years together, Workshop has been
(MASTER CAM X6 & L-CAM) & CNC machines are being catering to the needs of Scientists / Technologists to do
used in the central workshop to help in the development high-end research.

FACILITIES IN CENTRAL WORKSHOP

Facility in CNC section

1) CNC Turning m/c-
Specification:-
Make: - ACE Designer
Model: - JOBBER XL
Control System: - FANUC Oi Mate-TD
Accuracy: - 0.01 mm

2) CNC Milling m/c-
Specification:-
Make: - BFW
Model: - BMV 45 TC20
CONTROL SYSTEM: - FANUC Oi -TD
Accuracy: - 0.01 mm

3) WIRE EDM m/c-
Specification:
Make: - ELECTRONICA MACHINE TOOLS LTD
Model: - ECOCUT- ELPULS15
Control System: - P MAC
Accuracy: - 0.01 mm
